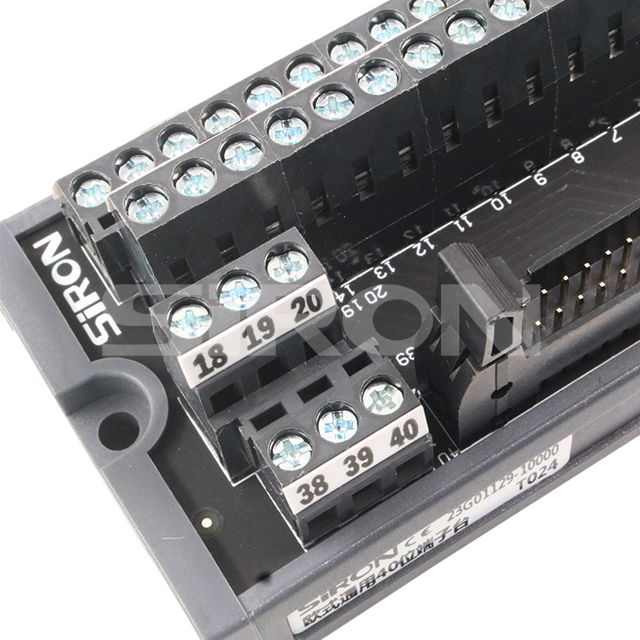

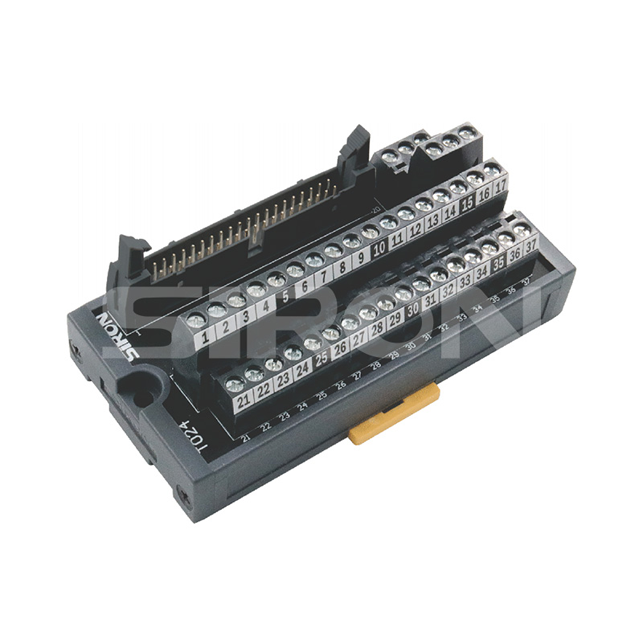

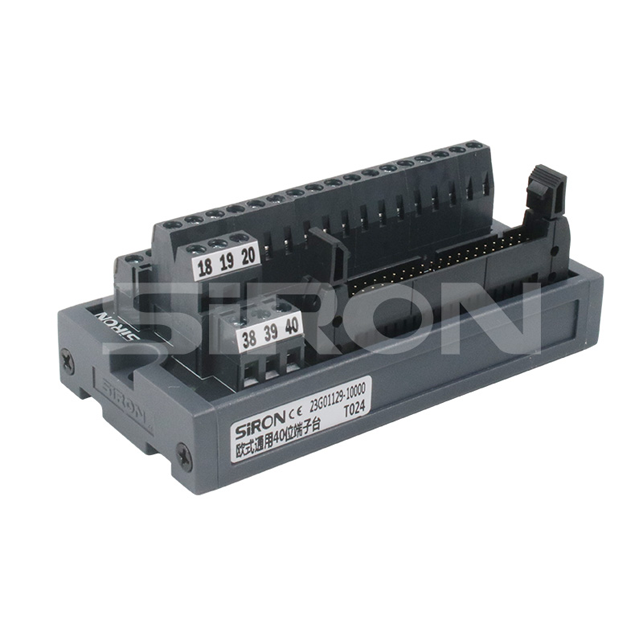

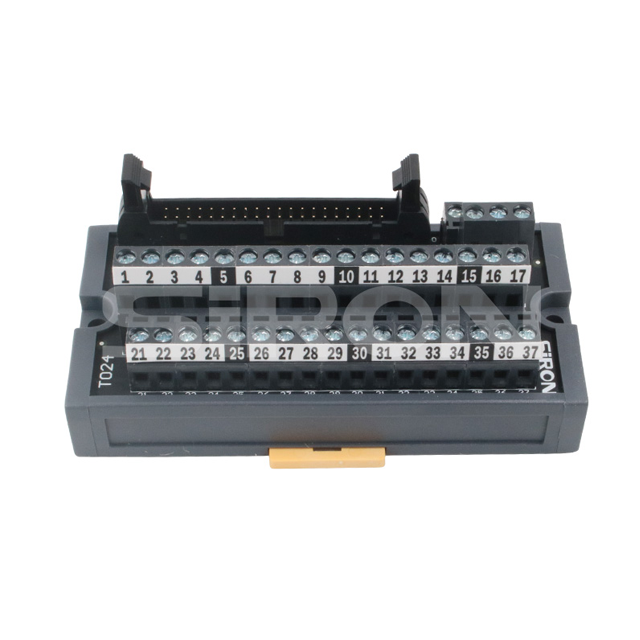

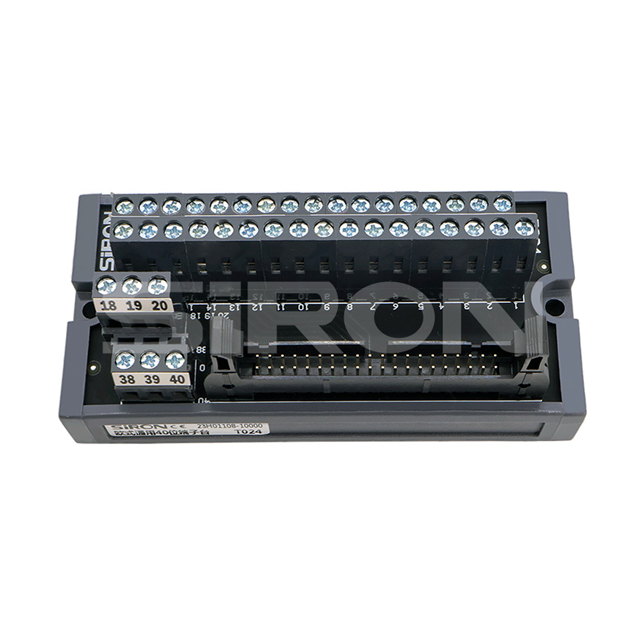

T022/T023/T024
SiRON
8504401400
合适的电线
| 1.5mm²下列/awg16;剥离长度：6mm |  |
类型选择参考
型号 | T022 | T022-K | T023 | T023-K | T024 | T024-K |
| 名称 | 欧式通用20位端子台 | 欧式通用34位端子台 | 欧式通用40位端子台 | |||
合适的PLC
| OMRON | CJ1W-MD232 CJ1W-MD233 | CJ1W-ID231 CJIW-ID261 CJIW-MD261（in） CJ1W-MD263（in） CJIW-MD563（in） CJ1W-OD231 CJ1W-OD261 CJ1W-MD261（OUT） | CJ1W-OD232 CJ1W-OD233 CJ1W-OD262 CI1W-OD263 CJ1W-MD263（OUT） CJ1W-MD563（OUT） CJ1M-CPU21 CJ1M-CPU22 CJ1M-CPU23 CJIW-ID232 CJ1W-ID262 | ||
| MITSUBISHI | FX1NC-16MT FX2NC-16EXL-C FX1NC-32MT FX2NC-16EYT FX2NC-16MT FX2NC-17EYT-C FX2NC-32MT FX2N-10PG FX3UC-32MT FX2N-10GM FX2NC-16EX FX2N-20GM FX2NC-16EX-C | QX41 QX41-S1 QX42 QX42-S1 QX71 QX72 QY41P | QY42P QY71 QH42P QD70P4 QD70P QD70D QD75M | ||
| KEYENCE | KV-NC16EX KV-NC16ET | KV-C32XA/c KV-C64XAC KV-C32TA/c KV-C64TA/c | KV-NC32T KV-NC32EX KV-NC32ET KV-NC16EXT | KV-1000 KV-3000 KV-5000 KVH20S KVH40S FPG-XY64D2T/p FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/p FP2-Y64T/p FP2-XY64D2T FP2-XY64D7T | KV-SH04PL |
| Panasonic | FPG-XY64D2T/p FP2-C1D FP2-X32D2 FP2-X64D2 FP2-32T/p FP2-Y64T/p FP2-XY64D2T FP2-XY64D7T | FP2-XY64D2P FP2-XY64D7P FP2-PP21 FP2-PP22 FP2-PP41 FP2-PP42 FP2-HSCT fp2-pxyt | |||
| SIEMENS | 40P Plug with a full range | ||||
| Yokogawa | F3WD64-3N F3WD32-3F | F3WD64-3F | |||
关联产品
| 适用电缆 | X200-2 X218-1 X218-9 | X200-3 X210-3 | X200-4 X210-4 X210-5 X218-6 |
| (详情请参阅本目录缆线系列） | |||
规格
| 输入 | 额定电流 | 1A | |
| 额定电压 | DC24V | ||
| 输出侧对应 | Servo motor control signal line circuit | Button Switch,Photoelectric Switch,Solenoid, Indicator,Stepping Servo Motor,etc. | |
